4 Easy Steps To Quickly Install A Capacitor

Have you ever wondered how to install a capacitor? It’s a relatively simple process, but there are a few things you need to know before you get started. In this article, we’ll provide you with step-by-step instructions on how to install a capacitor, as well as some helpful tips and troubleshooting advice.

Before you begin, it’s important to gather the necessary materials. You will need a capacitor, a soldering iron, solder, wire strippers, and electrical tape. Once you have all of your materials, you can follow the steps below to install the capacitor.

First, you need to identify the positive and negative terminals of the capacitor. The positive terminal is usually marked with a plus sign (+) or a red stripe. The negative terminal is usually marked with a minus sign (-) or a black stripe. Once you have identified the terminals, you can begin soldering the capacitor into place. Start by soldering the positive terminal of the capacitor to the positive terminal of the circuit board. Then, solder the negative terminal of the capacitor to the negative terminal of the circuit board. Be sure to use a heat sink when soldering to prevent damage to the capacitor.

Selecting the Right Capacitor for Your Application

Choosing the correct capacitor for your specific application is crucial to ensure optimal performance and prevent system failures. Consider these key factors when selecting a capacitor:

Capacitance Value: The capacitance value, measured in Farads (F), determines the amount of charge the capacitor can store. Ensure the capacitance value aligns with your circuit’s requirements.
Voltage Rating: The voltage rating indicates the maximum voltage the capacitor can withstand without dielectric breakdown. Select a capacitor with a voltage rating that exceeds the voltage present in your circuit.
Type of Capacitor: There are various types of capacitors, each with unique characteristics. Common types include electrolytic capacitors, ceramic capacitors, and tantalum capacitors.
Environmental Conditions: Consider the operating temperature range, humidity, and any potential mechanical stress that the capacitor may be exposed to. Choose a capacitor that is suitable for your specific environmental conditions.
Package Size: The physical size and shape of the capacitor are important, especially when space is limited. Ensure the capacitor’s dimensions fit within your circuit board design.

Electrolytic Capacitors

Electrolytic capacitors are polarized and have a relatively high capacitance value. They are commonly used in power supply circuits and smoothing filters. Here are some additional considerations when selecting electrolytic capacitors:

Electrolyte Type: Electrolytic capacitors use electrolytes such as aluminum or tantalum. Aluminum electrolytic capacitors are more commonly found and offer high capacitance values.
Capacitance Tolerance: Electrolytic capacitors often have a wider capacitance tolerance compared to other types, typically ranging from ±20% to ±50%. This tolerance should be considered when designing your circuit.
ESR (Equivalent Series Resistance): ESR is a parasitic resistance that affects the performance of electrolytic capacitors, especially at high frequencies. Lower ESR capacitors are preferred for applications where ripple current is significant.
Lifetime: Electrolytic capacitors have a limited lifespan and may experience gradual capacitance loss over time. Factor in the expected lifetime of the capacitor when selecting one for your application.

Electrolytic Capacitor Types	Comparison
Aluminum Electrolytic	High capacitance values, low ESR, long lifespan
Tantalum Electrolytic	Compact size, low leakage current, short lifespan

Identifying Capacitor Terminals and Polarity

Capacitors have two terminals, marked as positive (+) and negative (-). The positive terminal is typically longer than the negative terminal. Identifying the correct polarity is crucial, as connecting a capacitor with reversed polarity can damage the circuit or the capacitor itself.

For electrolytic capacitors, the negative terminal is usually marked with a stripe or minus sign (-). Tantalum capacitors have a small “+” or “-” symbol on the case.

Ceramic capacitors are non-polar and do not have designated terminals. They can be connected in any orientation without affecting their function.

General Guidelines for Identifying Capacitor Polarity

Capacitor Type	Positive Terminal
Electrolytic	Longer terminal or marked with “+”
Tantalum	Marked with “+” or “-” symbol
Ceramic	Non-polar, no designated terminals

When in doubt, always refer to the capacitor’s datasheet or consult with an experienced electrician.

Verifying Capacitor Installation

1. Power down the circuit.

Before beginning any electrical work, it is essential to ensure that the circuit is de-energized. This can be done by turning off the power at the main breaker or fuse box.

2. Discharge the capacitor.

Even after the power has been turned off, the capacitor may still hold a charge. To discharge it, use an insulated screwdriver or other non-conductive object to short the terminals together. This will allow the capacitor to safely discharge its stored energy.

3. Check the capacitor’s connections.

Once the capacitor has been discharged, inspect its connections to ensure that they are secure. Loose or damaged connections can lead to problems, so it is important to make sure that they are tight and in good condition.

4. Measure the capacitor’s capacitance.

Using a multimeter, measure the capacitance of the capacitor. This will help to verify that the capacitor is functioning properly and has the correct value for the application.

5. Check the ESR (Equivalent Series Resistance) of the capacitor.

The ESR of a capacitor is a measure of its internal resistance. A high ESR can lead to problems with ripple current and voltage drop. To check the ESR, use a specialized ESR meter.

6. Measure the voltage rating of the capacitor.

The voltage rating of a capacitor indicates the maximum voltage that it can safely withstand. To measure the voltage rating, use a multimeter.

7. Check Casing Intact, Terminals Correct, and Polarity Correct


Casing Intact	Inspect the capacitor’s casing for any signs of damage, such as cracks, bulges, or leaks. A damaged capacitor should be replaced immediately.
Terminals Correct	Verify that the capacitor’s terminals are connected to the correct points in the circuit. Miswiring can damage the capacitor or other components.
Polarity Correct	For electrolytic capacitors, ensure that the positive terminal is connected to the positive side of the circuit and the negative terminal to the negative side. Incorrect polarity can damage the capacitor.

Troubleshooting Capacitor Issues

Symptoms:

Device won’t turn on
Device turns on but shuts off quickly
Device runs but with reduced power or performance

Capacitor Testing:

To test a capacitor, use a multimeter in capacitance mode. Connect the leads to the capacitor’s terminals and check the reading. The reading should match the capacitor’s rated capacitance within a tolerance of 5-10%.

Common Capacitor Issues:

1. Bulging or leaking: Replace the capacitor immediately, as it may burst and cause damage

2. Loose or disconnected terminals: Tighten the connections or re-solder the capacitor

3. Wrong type or value: Ensure the capacitor has the correct capacitance, voltage, and type for the circuit

4. Internal shorts: Replace the capacitor as it may cause short circuits and damage other components

5. Overheating: Identify and eliminate the cause of overheating, such as excessive current or improper cooling

6. Electrolytic capacitor polarity: Ensure electrolytic capacitors are connected with the correct polarity (positive terminal to positive voltage)

7. Tantalum capacitor failure: Tantalum capacitors are prone to catastrophic failure; replace them proactively if they exhibit any signs of trouble

8. Age and deterioration: Capacitors may gradually lose capacitance over time. Replace aging capacitors to maintain optimal circuit performance.

Capacitor Failure Detection and Prevention:

Regularly inspect capacitors for bulges, leaks, or loose connections. Monitor capacitor performance using data logging or diagnostic tools to detect any degradation early. Implement surge protection and voltage regulation measures to protect capacitors from voltage spikes.

Symptom	Possible Cause	Solution
Device won’t turn on	Faulty capacitor	Replace capacitor
Reduced power or performance	Capacitor aging or deterioration	Replace capacitor
Device shuts off quickly	Short circuit in capacitor	Replace capacitor

Grounding the Capacitor Properly

9. Discharging the Capacitor Before Grounding:

Before grounding the capacitor, it is crucial to discharge it to ensure safety. Use an insulated screwdriver to short the capacitor terminals together. Hold the screwdriver by the insulated handle and keep your fingers well away from the metal conductors. The capacitor will quickly discharge, releasing its stored charge safely. Repeat this process to confirm complete discharge before proceeding to grounding.

9.1. Grounding Methods:

Method	Description
Chassis Grounding	Connect the capacitor’s negative terminal directly to the chassis or ground bus using a wire with adequate current-carrying capacity.
Common Point Grounding	Connect the negative terminal to a common grounding point shared with other circuit components to reduce ground loops and interference.

9.2. Ground Wire Selection:

Use a copper wire with an appropriate gauge to meet the current requirements of the circuit. Typically, a wire gauge of 14 AWG or larger is sufficient for most applications.

9.3. Grounding Considerations:

Ensure that the ground connection is reliable and free of corrosion. Loose or intermittent grounds can lead to performance issues and safety hazards. Use star washers or lock washers to prevent ground wire loosening.

Capacitor Maintenance and Servicing

1. Inspect Connections

Regularly inspect all capacitor connections to ensure they are tight and secure. Loose connections can cause arcing, overheating, and premature capacitor failure.

2. Clean Contacts

Periodically clean capacitor contacts using a soft brush or cloth. Dirt and debris can accumulate over time, leading to poor electrical contact and reduced capacitor performance.

3. Monitor Temperature

Capacitors can become excessively hot during operation. Monitor capacitor temperatures and ensure they remain within the manufacturer’s specified operating range. Overheating can significantly reduce capacitor life.

4. Replace Defective Capacitors

Capacitors that exhibit signs of failure, such as bulges, leaks, or abnormal temperature, should be replaced immediately. Ignoring capacitor defects can lead to catastrophic failure and potential safety hazards.

5. Perform Voltage Testing

Periodic voltage testing can help identify capacitors with reduced capacitance or insulation breakdown. Voltage testing should be performed by a qualified electrician using appropriate test equipment.

6. Label Capacitors

Clearly label all capacitors with their voltage and capacitance values. This information will be crucial for replacement purposes and troubleshooting.

7. Avoid Overvoltage and Overcurrent

Capacitors should never be subjected to voltages or currents that exceed their specified ratings. Overvoltage or overcurrent can lead to capacitor failure and potential hazards.

8. Handle Capacitors Safely

Capacitors can store significant energy and can deliver a sudden shock if improperly handled. Always discharge capacitors before handling them by shorting the terminals together.

9. Use Capacitors Within Operating Range

Capacitors should be used within their specified operating temperature, voltage, and frequency ranges. Exceeding these limits can compromise capacitor performance and reliability.

10. Environmental Considerations

Environmental Factor	Effect on Capacitors
Temperature	Capacitance and life expectancy can be affected.
Humidity	Capacitors can absorb moisture, leading to increased leakage current and reduced insulation resistance.
Vibration	Capacitors can be mechanically damaged by excessive vibration.
Chemical Exposure	Certain chemicals can degrade capacitor materials.

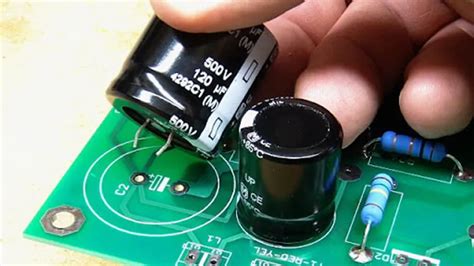

How to Install a Capacitor

Installing a capacitor requires precision and proper safety precautions. Here’s a step-by-step guide to ensure a successful installation:

1. **Safety First:** Disconnect the circuit by turning off the main power. Verify that the circuit is dead using a voltage tester.

2. **Determine Capacitor Orientation:** Most electrolytic capacitors have a positive (+) terminal clearly marked. Ensure the capacitor is oriented correctly based on the polarity indicated on the circuit diagram or the component itself.

3. **Locate Installation Point:** Identify the designated location on the printed circuit board (PCB) or wiring diagram where the capacitor needs to be installed.

4. **Solder Capacitor:** Use a soldering iron to carefully solder the capacitor’s terminals into the designated holes. Ensure proper solder joints by heating the terminals and adding solder to create a strong connection.

5. **Trim Excess Leads:** Once the capacitor is soldered in place, trim any excess wire leads to avoid short-circuiting.
